Store Instead of Recompute: 10x Faster AI Inference Beyond the Context Bottleneck

AI-Native KV Cache Storage · Distributed KV Cache Storage

WQS (WiDE Query Storage), designed from the ground up by ExponTech for large-scale AI inference, connects seamlessly to mainstream inference frameworks such as vLLM and SGLang through its native KV interface. It extends GPU HBM memory transparently with a distributed KV Cache storage pool, delivering unlimited capacity scaling and cluster-wide global sharing — a storage foundation built for long-context, high-concurrency inference. Store instead of recompute — break through the context bottleneck.

20x

TTFT speedup (100K-token input)

22x

Token throughput gain

<200μs

End-to-end read latency

97–98%

Cache hit rate in production

100%

DPU-native offload (optional)

Three Innovation Pillars

Fully native design built around the I/O characteristics of KV Cache — not a patch on legacy storage

AI-Native KV Interface & KV Engine

Native "KV → network → KV" path: 2 hops, 0 kernel crossings, fully user-space RDMA zero-copy

Manages raw NVMe SSDs directly with unified pooling, bypassing the lengthy file-system I/O path and kernel overhead

Flat full-bandwidth across 16K–10M small I/O, while DFS bandwidth collapses ~10× on small I/O

CacheBlend non-prefix reuse: matches cached KV at any position in a sequence, effective hit rate up to 98%+

Layer-Wise Pipelined Loading

Prefetches layer i+1 KV while the GPU computes layer i — I/O latency fully hidden behind compute

Per-layer KV load time down to <10μs; the SSD-vs-HBM latency gap no longer bottlenecks end-to-end inference

Block granularity down to 16 tokens (16× finer than conventional), yielding finer matching and higher hit rates

DPU-Native Architecture (Optional)

Software runs 100% on NVIDIA BlueField DPU + JBOF — zero host CPU involvement in the storage path

No dedicated storage servers needed; 1 WQS node ≈ 3 traditional storage servers of equivalent performance

Perfectly aligned with the NVIDIA CMX tiered caching architecture, serving as the G3.5 shared KV pool layer

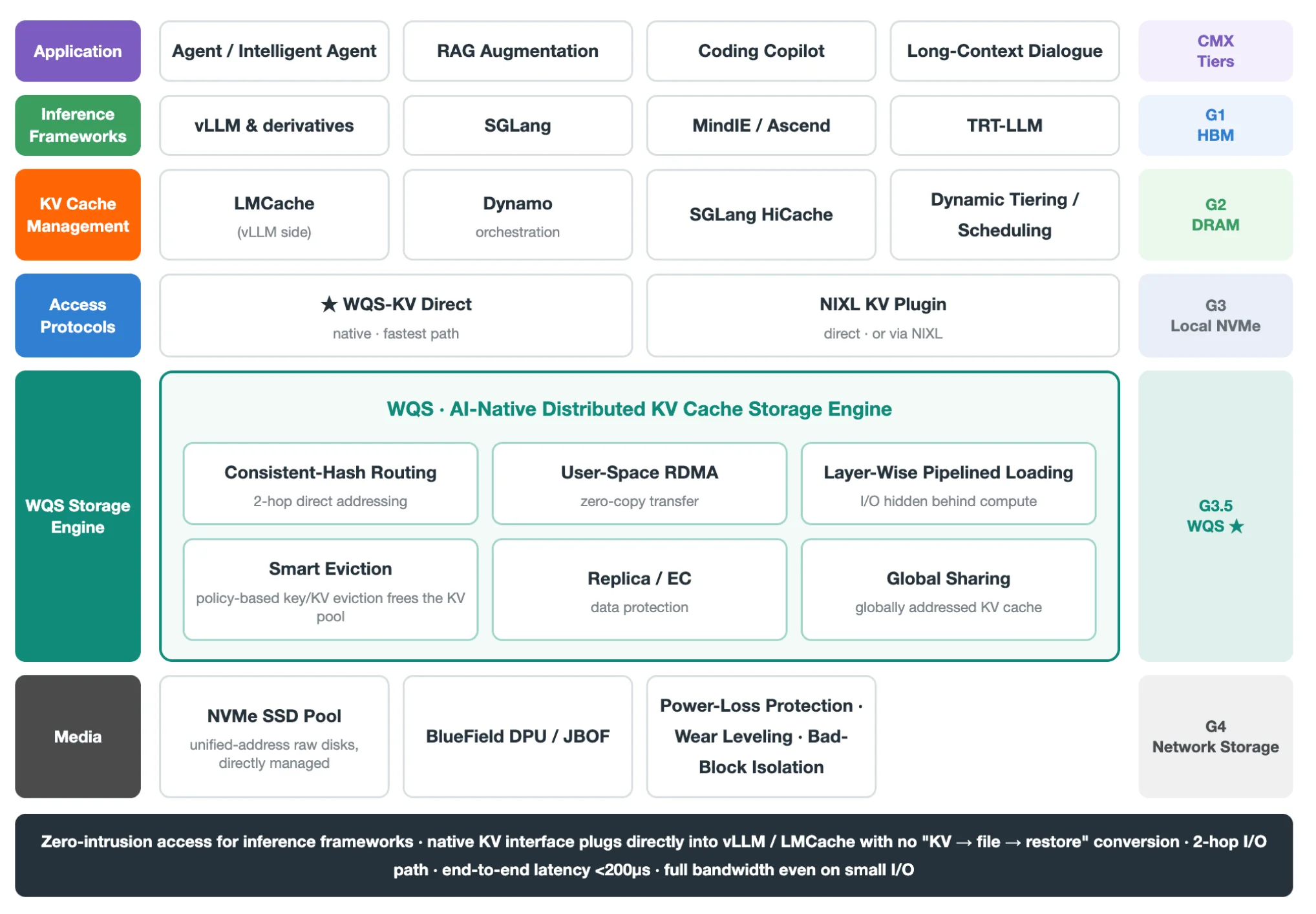

System Architecture

End-to-end layering from application to media: zero-intrusion access for inference frameworks, end-to-end latency <200μs

Measured Performance

Joint testing on production-equivalent hardware: lab stress scenario and real-workload A/B comparison

Lab Stress Scenario: Full Recompute vs. Full Hit

DeepSeek-R1-0528 · 8× NVIDIA H20 · vLLM + LMCache · 100K-token input

Metric	GPU recompute	WQS full hit	Gain
TTFT (time to first token)	323 s	16s	20x
Token throughput	4,194 tok/s	90,000 tok/s	22x
Inter-token latency (ITL)	baseline	≈ 1/12	12x
End-to-end read latency	—	<200μs	—

Real-Workload A/B Comparison: Multi-turn Agents at High Concurrency

GLM 4.7 355B · 30K-token system prompt · multi-turn sessions · 30–100 concurrent users · HBM-only vs. HBM + WQS

Concurrency	TTFT · HBM only	TTFT · HBM+WQS	Throughput	Hit rate
30	22.38s	5.03s	4.5x	97%
60	179.56s	42.19s	4.4x	97%
100	399.35s	88.03s	4.7x	97%

HBM-only hits an "eviction cliff" at 30 concurrent users — TTFT degrades catastrophically to 399 s. WQS absorbs the overflowing KV Cache beyond HBM, keeping performance flat and predictable: a stable 4.4–4.7× throughput gain and 76–78% TTFT reduction on real workloads.

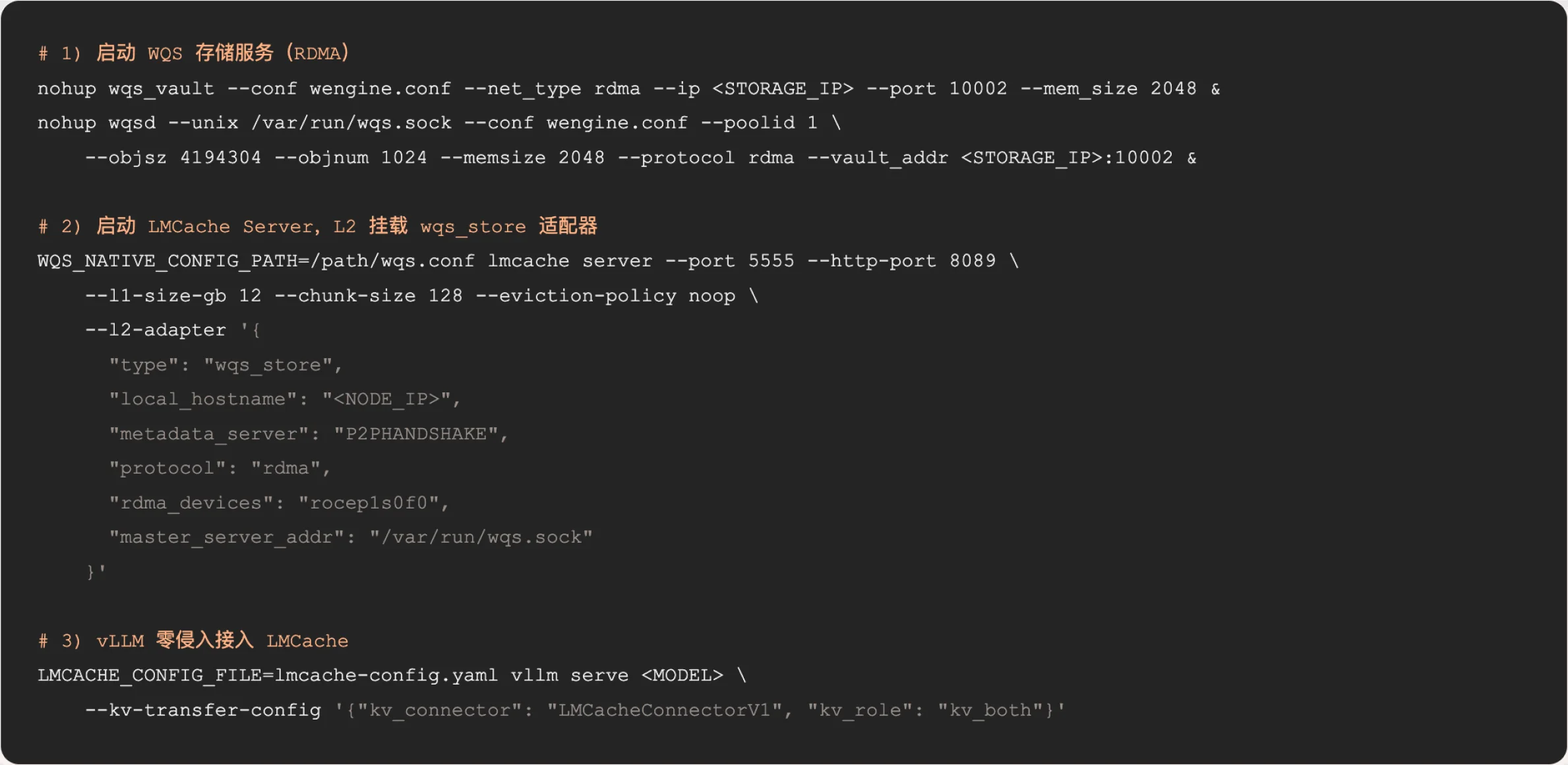

Integration with vLLM + LMCache

Zero intrusion into the inference stack: keep your existing vLLM + LMCache deployment and attach the WQS pool in three steps

Step 1 · Start the WQS storage cluster

Deploy the wqs_vault / wqsd storage services (RDMA transport, NVMe pool capacity, CPU pinning) to serve KV Cache requests.

Step 2 · Attach the WQS L2 adapter to LMCache Server

Launch lmcache server with --l2-adapter type wqs_store for RDMA-direct access to the pool, with a hugepage memfd-backed L1.

Step 3 · Hook vLLM into LMCache

vLLM connects through LMCacheConnectorV1 with zero code changes; prefix KV automatically tiers into WQS, shared cluster-wide.

Flexible Deployment Options

One software kernel, multiple form factors — compatible with vLLM / SGLang / LMCache / Mooncake / Dynamo / NVIDIA CMX

Software-Only

Standard x86 servers with local NVMe SSDs and 200G+ RoCE NICs. Minimum footprint: a single node with 16 cores and 48 GB RAM; no dedicated metadata disk required. Lowest barrier to deploy.

DPU + JBOF (High Performance)

WQS runs entirely on NVIDIA BlueField DPUs, freeing 100% of host CPUs for inference. A 2U chassis with 4× DPUs and 26× NVMe delivers up to 800Gbps × 4 bandwidth at a much lower $/TB.

Turnkey Appliance

Pre-installed WQS integrated storage servers — out-of-the-box deployment, deeply tuned and certified hardware, unified operations console, with SSD supply secured via strategic vendor partnerships.
